| Model |

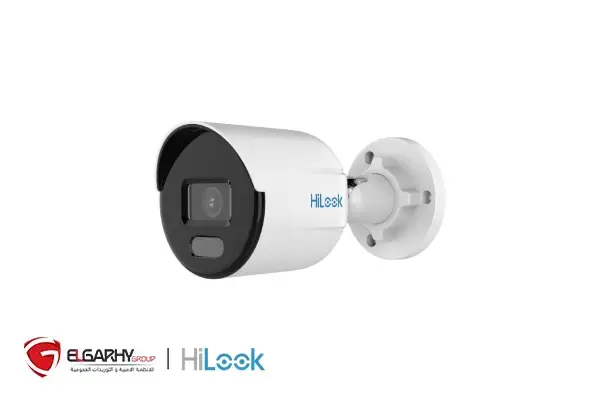

IPC-B149H |
| Image Sensor |
1/3″ Progressive Scan CMOS |
| Max. Resolution |
2560 × 1440 |
| Min. Illumination |
Color: 0.001 Lux @(F1.0, AGC ON), B/W: 0 Lux with white light |
| Shutter Speed |
1/3 s to 1/100,000 s |
| Day & Night |
24/7 Color imaging |
| Angle Adjustment |
Pan: 0°–360°, Tilt: 0°–90°, Rotate: 0°–360° |
| Lens Type |
Fixed focal lens, 2.8 mm and 4 mm optional |
| Focal Length & FOV |
2.8 mm: H 96.5°, V 50.8°, D 113.9°4 mm: H 75.8°, V 40.8°, D 89.1° |
| Lens Mount |
M12 |
| Iris Type |
Fixed |
| Aperture |
F1.0 |
| DORI |
2.8 mm: D: 64 m, O: 25.4 m, R: 12.8 m, I: 6.4 m4 mm: D: 77.4 m, O: 30.7 m, R: 15.5 m, I: 7.7 m |
| Illuminator Type |
White light |
| Supplement Light Range |
Up to 30 m |
| Smart Supplement Light |
Yes |
| Main Stream |
50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720)60 Hz: 20 fps (2560 × 1440), 30 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream |
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression |
H.265+/H.264+/H.265/H.264 (Main)H.265/H.264/MJPEG (Sub) |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| H.264 Type |
Baseline/Main/High Profile |
| H.265 Type |
Main Profile |
| ROI |
1 fixed region (main stream) |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| Simultaneous Live View |
Up to 6 channels |
| API |
ONVIF, ISAPI |
| Users/Hosts |
Up to 32 users (Administrator, Operator, User) |
| Client Software |
iVMS-4200, Hik-Connect |
| Web Browser |
Live view with plug-in: IE 10+Plug-in free: Chrome 57+, Firefox 52+ |
| Image Settings |
Saturation, brightness, contrast, sharpness, AGC, white balance (adjustable) |
| Day/Night Switch |
Day, Night, Auto, Schedule |
| WDR |
120 dB |
| Image Enhancement |
BLC, 3D DNR |
| Ethernet Interface |
1 × RJ45 10M/100M self-adaptive |
| Basic Events |
Motion detection, video tampering alarm, exception |
| Linkage Methods |
FTP upload, notify center, send email, trigger capture |
| Power |
12 VDC ±25%, 0.4 A, max. 5 WPoE: 802.3af Class 3, max. 6.5 W |
| Material |
Aluminum alloy body |
| Dimension |
Ø76.6 mm × 164.4 mm (Ø3″ × 6.5″) |
| Package Dimension |
234 mm × 120 mm × 117 mm (9.2″ × 4.7″ × 4.6″) |
| Weight |
425 g (0.9 lb) |
| Weight with Package |
633 g (1.4 lb) |
| Storage Conditions |
-30 °C to 60 °C, Humidity ≤95% (non-condensing) |
| Operating Conditions |
-30 °C to 60 °C, Humidity ≤95% (non-condensing) |
| Languages |
English, Ukrainian |
| General Functions |
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP filter |
| EMC |
FCC Part 15, CE-EMC EN 55032:2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, RCM, KC |
| Safety |
CB: IEC 62368-1:2014+A11, CE-LVD: EN 62368-1:2014/A11:2017, BIS: IS 13252 |
| Environment Approvals |
CE-RoHS, WEEE, Reach |
| Protection |
IP67 |
