| Model |

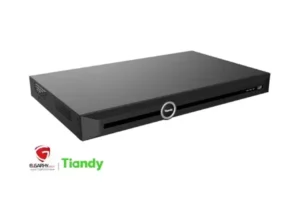

TC-R3220:I/B/P16/K/V3.0 |
| Video Input |
20 Channels |
| Max Resolution |
Up to 8MP |
| Two-way Audio Input |
1 Channel, 3.5mm |
| Incoming Bandwidth |
120 Mbps |
| Outgoing Bandwidth |
100 Mbps |
| Video Output |
HDMI / VGA |
| Screen Split |
1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 12 / 13 / 16 / 20A / 20B |
| Audio Output |
1 × RCA |
| Decoding Format |
S+265 / H.265 / H.264 |
| Recording Resolution |
8MP / 6MP / 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Preview Capability |
1×8MP, 1×6MP, 1×5MP, 2×4MP, 4×1080P, 8×720P, 20×4CIF |
| Synchronous Playback |
1×8MP, 1×6MP, 1×5MP, 2×4MP, 2×3MP, 4×1080P, 8×720P |
| Recording Encryption |
Yes |
| HDD Interface |
2 × SATA |
| Max HDD Capacity |
Up to 10TB per HDD |
| eSATA |
N/A |
| RAID / Array Type |
N/A |
| Network Interface |
1 × RJ45, 10/100/1000 Mbps (Self-adaptive) |
| USB Ports |
2 × USB 2.0 |
| Serial Interface |
N/A |
| Alarm I/O |
4 In / 1 Out |
| Network Protocols |
TCP/IP, HTTP/HTTPS, RTSP, RTP, IPv4/IPv6, FTP, SMTP, SNMP, SSL, RTMP, NFS, QoS, UPnP, IGMP |
| System Compatibility |
ONVIF Profile S / T / G, SDK, P2P |
| PoE Ports |
16 × RJ45 (10/100 Mbps) |
| PoE Standard |
IEEE 802.3af / 802.3at |
| Max PoE Power per Port |
30 W |
| Max PoE Current per Port |
600 mA |
| Web Version |
Web6 |
| Supported Languages |
English, Arabic, French, Spanish, Russian, Turkish, Italian, Korean, Chinese, and more |
| Operating Conditions |
-10°C ~ 55°C, 10% ~ 90% RH |
| Power Supply |
100–240V AC, 50/60 Hz |
| Power Consumption |
25W (without HDD) |
| Chassis |
1U |
| HDMI Output Resolution |
3840×2160, 2560×1440, 1920×1080, 1280×720, 1024×768, 1440×900, 1280×800 |
| VGA Output Resolution |
1920×1080, 1280×720, 1024×768, 1440×900, 1280×800 |
| Weight (Without HDD) |
3.05 kg (6.72 lb) |
