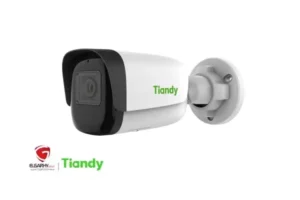

| Feature | TC-C38WS:I5/E/Y/M/H/4mm |
|---|---|
| Image Sensor | 1/2.8″ CMOS |
| Signal System | PAL / NTSC |
| Minimum Illumination | Color: 0.01 Lux @ (F1.6, AGC ON) B/W: 0 Lux with IR |
| Shutter Time | 1s ~ 1/100,000s |
| Day & Night | Dual IR Cut Filter with Auto Switch |
| Wide Dynamic Range (WDR) | 120 dB |
| Angle Adjustment | Pan: 0–360°, Tilt: 0–75°, Rotate: 0–360° |
Lens
| Feature | Details |
|---|---|
| Lens Type | Fixed |
| Focal Length | 2.8mm / 4mm |
| Lens Mount | M12 |
| Aperture | F1.6 (Fixed) |
| Field of View (FOV) | 96° (2.8mm) / 84.8° (4mm) |
Illuminator
| Feature | Details |
|---|---|
| IR LEDs | 2 |
| IR Range | Up to 50 m |
| IR Wavelength | 850 nm |
| White / Warm Light LEDs | N/A |
Compression Standard
| Feature | Details |
|---|---|
| Video Compression | S+265 / H.265 / H.264 / M-JPEG |
| Video Bit Rate | 32 Kbps ~ 16 Mbps |
| Audio Compression | G.711A / G.711U / ADPCM / AAC |
| Audio Bit Rate | 8 Kbps ~ 48 Kbps |
Image & Video
| Feature | Details |
|---|---|
| Max Resolution | 3840 × 2160 (4K) |
| Image Settings | Saturation, Brightness, Contrast, Sharpness (adjustable via client or web) |
| Image Enhancement | BLC / 3D DNR / HLC / Corridor Mode |
| ROI | Supports up to 8 fixed regions |
| Picture Overlay | Yes |
| Privacy Mask | Yes, up to 8 regions |
| Smart Defog | Yes |
Frame Rate
| System | Resolution & FPS |
|---|---|
| PAL | 20fps (3840×2160, 3072×2048) 25fps (2560×1440, 2304×1296, 1920×1080, 1280×720) |
| NTSC | 20fps (3840×2160, 3072×2048) 30fps (2560×1440, 2304×1296, 1920×1080, 1280×720) |
| Sub Stream (PAL) | 25fps (704×576, 704×288, 640×480, 352×288) |
| Sub Stream (NTSC) | 30fps (704×480, 704×240, 640×480, 352×240) |
| Third Stream (PAL) | 25fps (1280×720, 704×576, 704×288, 640×360, 352×288) |
| Third Stream (NTSC) | 30fps (1280×720, 704×480, 704×240, 640×360, 352×240) |
Smart Features & Video Analytics
| Feature | Details |
|---|---|
| Video Analytics | Tripwire, Double Tripwire, Perimeter, Object Abandon/Lost, Loitering, Running, Parking, Crowd Detection, People Counting, On-Duty Detection |
| Advanced Analytics | Video Abnormal, Audio Abnormal, Heatmap |
| AI Functions | Face Capture (Face Detection), Safety Helmet Detection, Human/Vehicle Classification |
| Early Warning (EW) | N/A |
Alarm & Events
| Feature | Details |
|---|---|
| Alarm Trigger | Event Input / Output |
| Event Types | Motion Detection, Mask Alarm, Disk Full, Disk Read/Write Error, IP Conflict, MAC Conflict, FTP Exception |
Network & Protocols
| Feature | Details |
|---|---|
| ANR | Yes (Tiandy ANR NVR only) |
| Protocols | TCP/IP, HTTP/HTTPS, RTSP, RTP, IPv4/IPv6, FTP, SMTP, SNMP, SSL, SIP, RTMP, SFTP, NFS, QoS, 802.1x, UPnP, IGMP, ARP |
| System Compatibility | ONVIF Profile S / T / G, SDK, Milestone, CGI, P2P |
| Remote Connection | Up to 7 users |
| Client Software | Easy7, EasyLive |
| Web Version | Web6 |
Interface & Storage
| Feature | Details |
|---|---|
| Ethernet | 1 × RJ45 10/100M Self-adaptive |
| Audio | 1 Input / 1 Output, Mic In |
| Alarm I/O | 1 Input / 1 Output |
| Reset Button | Yes |
| On-board Storage | Micro SD Card Slot, up to 512GB |
General
| Feature | Details |
|---|---|
| Languages | 15 Languages (English, Arabic, French, Spanish, etc.) |
| Operating Conditions | -40°C ~ 65°C, 0–95% RH |
| Power Supply | DC 12V ±25% / PoE |
| Power Consumption | Max 6W (12V) / Max 7W (PoE) |
| Protection | IP67, Lightning & Surge Protection (EN 55035:2017) |
| Heater | N/A |
| Weight | 0.50 kg (1.10 lb) |
