| Category | Specification |
|---|---|

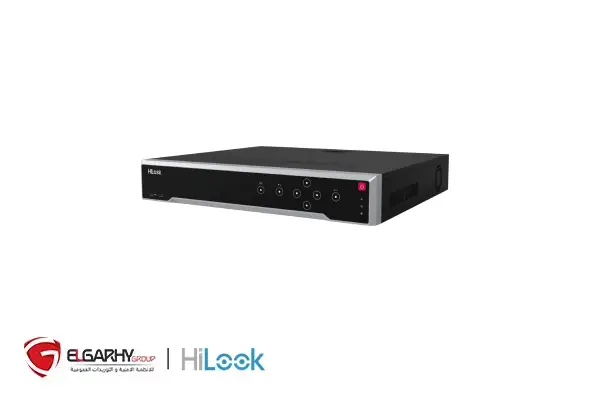

| Model | NVR-764MH-M4 |
| Video & Audio | IP Video Input: 64-ch, up to 32 MP resolution Note: بعد تفعيل وضع Ultra HD، يدعم حتى 8 قنوات بدقة 32MP/24MP Incoming Bandwidth: 400 Mbps Outgoing Bandwidth: 400 Mbps HDMI 1 Output: 8K (7680×4320)/30Hz, 4K (3840×2160)/60Hz, 4K/30Hz, 2K/60Hz, 1920×1080/60Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz HDMI 2 Output: 4K/60Hz, 4K/30Hz, 2K/60Hz, 1920×1080/60Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz Note: عند تفعيل HDMI1 بدقة 8K، أقصى دقة HDMI2 هي 1080p VGA Output: 1920×1080/60Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz Video Output Mode: HDMI1/VGA simultaneous, HDMI1/HDMI2 independent CVBS Output: 1-ch, BNC (PAL: 704×576 / NTSC: 704×480) Audio Output: 1-ch RCA (Linear, 1 KΩ) Two-Way Audio: 1-ch RCA (2.0 Vp-p, 1 KΩ) |
| Decoding | Format: H.265+/H.265/H.264+/H.264 Recording Resolution: 32MP/24MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Note: بعد تفعيل Ultra HD، يدعم حتى 8 قنوات بدقة 32MP/24MP Synchronous Playback: 16-ch Decoding Capability: 2-ch@32MP (30fps)+2-ch@8MP (30fps) / 10-ch@8MP (30fps) / 20-ch@4MP (30fps) / 40-ch@1080p (30fps) Dual-Stream Recording: Supported Stream Type: Video, Video & Audio Audio Compression: G.711ulaw / G.711alaw / G.722 / G.726 / AAC / MP2L2 |
| Network | Remote Connections: 128 Protocols: TCP/IP, DHCP, IPv4/IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF (V2.2), OTAP Network Interfaces: 2 × RJ-45 10/100/1000 Mbps self-adaptive Camera Access Protocol: ONVIF (V2.5), RTSP |
| RAID | Type: N/A |
| Auxiliary Interface | eSATA: 1 interface SATA: 4 interfaces Capacity: Up to 16 TB per disk Serial Interface: 2 × RS-485 (half-duplex), 1 × RS-232 Alarm In/Out: 16/9 USB Interfaces: Front: 2 × USB 2.0; Rear: 1 × USB 3.0 Ctrl 12V: 12 VDC, 1 A (للأجهزة الخارجية، تعمل عند تفعيل الإنذار 9) DC 12V: 12 VDC, 1 A power output |
| General | Power Supply: 100–240 VAC, 50–60 Hz Consumption (without HDD): ≤ 15 W Working Temperature: -10 °C to 55 °C (14 °F to 131 °F) Working Humidity: 10%–90% Chassis: 19-inch rack-mounted 1.5U Dimensions (W×D×H): 445 × 400 × 75 mm (17.5″×15.7″×3.0″) Weight (without HDD): ≤ 5 kg (11 lb.) |
| Certification | FCC: Part 15 Subpart B, ANSI C63.4-2014 CE: EN 55032:2015+A1:2020, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020 |
