| NVR | Specification |
|---|---|

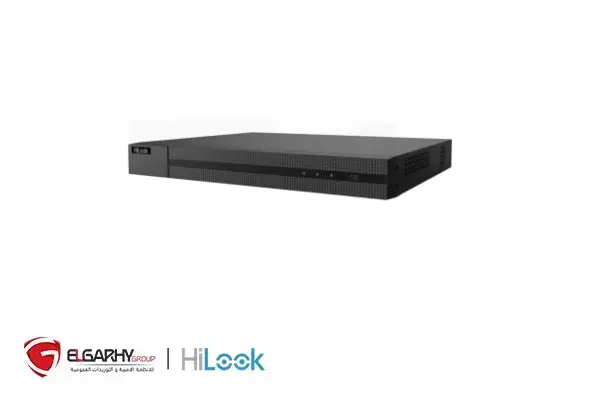

| Model | nvr-232mh-b |
| Video & Audio | IP Video Input: 32-ch, up to 12MP resolution Incoming Bandwidth: 256 Mbps Outgoing Bandwidth: 160 Mbps HDMI Output: 1-ch, 4096×2160/30 Hz, 3840×2160/30 Hz, 2560×1440/60 Hz, 1920×1080/60 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz VGA Output: 1-ch, 1920×1080/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz Video Output Mode: HDMI/VGA independent output CVBS Output: N/A Audio Output: 1-ch, RCA (Linear, 1 KΩ) Two-way Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Decoding | Decoding Format: H.265/H.265+/H.264/H.264+/MPEG4 Recording Resolution: 12MP/8MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Synchronous Playback: 16-ch Capability: 2-ch@8 MP (25 fps) / 4-ch@4 MP (30 fps) / 8-ch@1080p (30 fps) Stream Type: Video, Video & Audio Audio Compression: G.711ulaw / G.711alaw / G.722 / G.726 |
| Network | Remote Connection: 128-ch Protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS Network Interface: 1 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet |
| Auxiliary Interface | SATA: 2 interfaces Capacity: Up to 10TB for each disk Alarm In/Out: 4/1 USB: Front: 1 × USB 2.0; Rear: 1 × USB 3.0 |
| General | Power Supply: 12 VDC, 3.33 A Consumption (without HDD): ≤ 15 W Working Temperature: -10 °C to 55 °C (14 °F to 131 °F) Working Humidity: 10% to 90% Dimension (W × D × H): 385 × 315 × 52 mm (15.2″ × 12.4″ × 2.0″) Weight (without HDD): ≤ 1 kg (2.2 lb) |
| Certification | CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035:2017 |
