| Model |

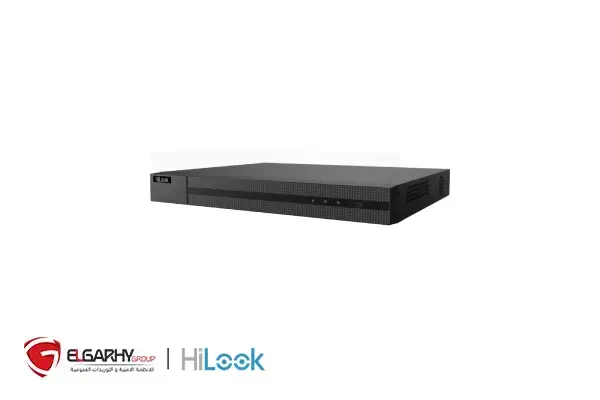

NVR-216MH-C/16P |
| IP Video Input |
16-ch |
| HDMI Output |
1-ch, 4K (3840×2160)/30Hz, 1920×1080p/60Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| VGA Output |
1-ch, 1920×1080p/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| Incoming Bandwidth |
160 Mbps |
| Outgoing Bandwidth |
80 Mbps |
| Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Decoding Format |
H.265+/H.265/H.264+/H.264 |
| Decoding Capability |
4-ch@1080p |
| Synchronous Playback |
16-ch |
| Recording Resolution |
8MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Network Protocols |
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Network Interface |
1 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet |
| PoE Interface |
16-ch |
| PoE Power |
≤ 150 W |
| PoE Standard |
IEEE 802.3 af/at |
| RAID Support |
No |
| SATA Interfaces |
2 |
| Capacity |
Up to 8 TB per disk |
| USB Interface |
2 × USB 2.0 |
| Power Supply |
100–240V~, 50/60Hz, 3.2A MAX |
| Consumption |
≤ 15 W |
| Working Temperature |
-10 °C to +55 °C (14 °F to 131 °F) |
| Working Humidity |
10% to 90% |
| Chassis |
1U chassis |
| Dimension (W × D × H) |
385 × 315 × 52 mm (15.2″ × 12.4″ × 2.0″) |
| Weight |
≤ 2.6 kg (5.7 lb.) |
