| Model |

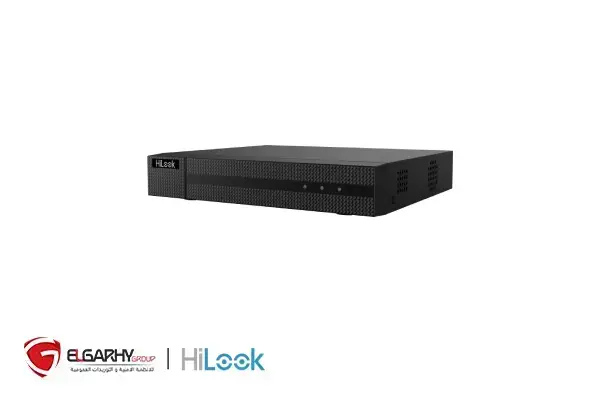

NVR-116MH-C |
| IP Video Input |
16-ch |
| HDMI Output |
1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA Output |
1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Incoming Bandwidth |
160 Mbps |
| Outgoing Bandwidth |
80 Mbps |
| Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Decoding Format |
H.265+, H.265, H.264+, H.264 |
| Decoding Capability |
4-ch @1080p |
| Synchronous Playback |
16-ch |
| Recording Resolution |
8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Network Protocol |
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Network Interface |
1 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet |
| PoE Interface |
N/A |
| RAID Type |
No |
| SATA Interface |
1 SATA interface |
| Capacity |
Up to 8TB for each disk |
| USB Interface |
2 × USB 2.0 |
| Power Supply |
12 VDC, 1.3 A |
| Consumption |
≤ 10 W |
| Working Temperature |
-10 °C to +55 °C (+14 °F to +131 °F) |
| Working Humidity |
10% to 90% |
| Chassis |
1U |
| Dimensions (W × D × H) |
265 × 225 × 48 mm (10.2″ × 8.9″ × 1.9″) |
| Weight |
≤ 1 kg (2.2 lb) |
