| Model |

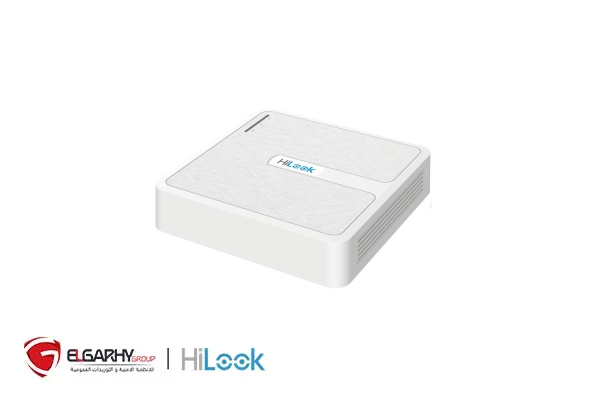

NVR-104H-D |
| IP Video Input |
4-ch, Up to 6 MP resolution |
| Incoming Bandwidth |
40 Mbps |
| Outgoing Bandwidth |
60 Mbps |
| HDMI Output |
1-ch, 1920×1080p/60Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz |
| VGA Output |
1-ch, 1920×1080p/60Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz |
| Video Output Mode |
HDMI/VGA simultaneous output |
| Decoding Format |
H.265+/H.265/H.264+/H.264 |
| Recording Resolution |
6 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Synchronous Playback |
4-ch |
| Decoding Capability |
4-ch@1080p (30 fps) / 2-ch@4MP (30 fps) / 1-ch@6MP (30 fps) |
| Stream Type |
Video, Video & Audio |
| Remote Connection |
16 |
| Network Protocols |
TCP/IP, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™ |
| Network Interface |
1 × RJ-45 10/100Mbps self-adaptive Ethernet |
| SATA |
1 SATA interface |
| Capacity |
Up to 6 TB per disk |
| Alarm In/Out |
N/A |
| USB Interface |
Rear panel: 2 × USB 2.0 |
| Power Supply |
12 VDC, 1.5 A |
| Consumption |
≤ 10 W (without HDD) |
| Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity |
10% to 90% |
| Dimension (W × D × H) |
200 × 200 × 48 mm (7.9″ × 8.1″ × 1.9″) |
| Weight |
≤ 1 kg (without HDD, 2.2 lb.) |
| Certification |
CE, EN50130-4, EN61000-3-2, EN61000-3-3 |
