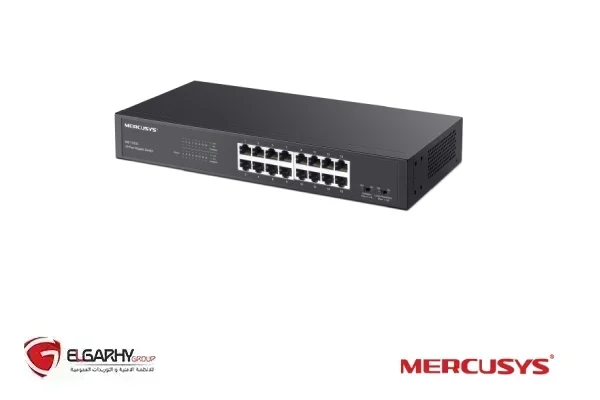

MS116GS |
- Standards and Protocols
- IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p
- Dimensions
- 294*140*44mm (11.6*5.5*1.7 in)
- Interfaces
- 16×10/100/1000Mbps RJ45 Ports, Auto-Negotiation, Auto MDI/MDIX
- External Power Supply
- 100-240VAC, 50/60Hz
- Switching Capacity
- 32 Gbps
- LED
- Power, Link/Act, 1000Mbps
- MAC Address Table
- 8K
- Software
- Transfer Method
- Store and Forward
- Advanced Features
- 802.3X Flow Control, 802.1P/DSCP QoS, Loop Prevention, Isolation
- Others
- Certifications
- CE, RoHS
- Environment
- Operating Temperature: 0˚C to 40˚C (32˚F to 104˚F)
Storage Temperature: -40˚C to 70˚C (-40˚F to 158˚F)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing
