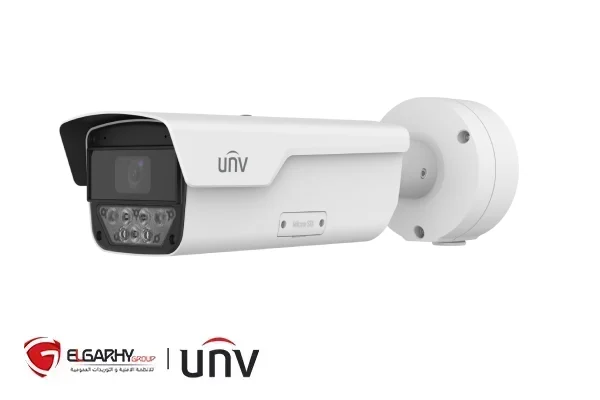

| IPS-HC264@HDX4-IR-I1 | IPS-HC264@HDX4-WH-I1 | |||||||
| Camera | ||||||||
| Max Resolution | 4 MP | |||||||
| Sensor | 1/1.8″ CMOS | |||||||
| Min. Illumination | Colour:0.0005 lux (F1.6, AGC ON) B/W:0.0003 lux (F1.6, AGC ON) 0 lux with IR |
Colour:0.0005 lux (F1.6, AGC ON) 0 lux with Light |
||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, 1 to 1/100000 s | |||||||
| WDR | 140 dB | |||||||
| Adjustment Angle | Pan: 0° to 360° Tilt: 0° to 90° Rotate: 0° to 360° |
|||||||
| S/N | >56 dB | |||||||
| Case Type | Bullet | |||||||
| Lens | ||||||||
| Focal Length | 8 to 32 mm | |||||||
| Digital Zoom | 16X | |||||||
| Optical Zoom | 4X | |||||||
| Iris | F1.6 | |||||||
| Field of View (H) | 42.6°~15.2° | |||||||
| Field of View (V) | 23.5°~8.9° | |||||||
| Field of View (D) | 52.4°°~17.9° | |||||||
| Iris Type | P-iris | |||||||
| DORI | ||||||||
| DORI Distance (Detect) | 124.1m(407.3ft)~496.6m(1629.1ft) | |||||||
| DORI Distance (Observe) | 49.7m(162.9ft)~198.6m(651.6ft) | |||||||
| DORI Distance (Recognize) | 24.8m(81.5ft)~99.3m(325.8ft) | |||||||
| DORI Distance (Identify) | 12.4m(40.7ft)~49.7m(162.9ft) | |||||||
| Illuminator | ||||||||
| Illumination Distance (Warm Light) | 40 m (131.2 ft) | |||||||
| Illumination Distance (IR) | 40 m (131.2 ft) | |||||||
| Wavelength | 850 nm | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| Frame Rate-Main Stream | 4MP(2688*1520), Max 60fps | |||||||
| Frame Rate-Sub Stream | 2MP(1920*1080), Max 60fps | |||||||
| Frame Rate-Third Stream | D1 (720*576), Max 60fps | |||||||
| Frame Rate Recommendation | 2688*1520@60fps+1080P@60fps+D1@60fps | |||||||
| Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
| U-code | Support | |||||||
| ROI | Up to 8 areas | |||||||
| Privacy Mask | Up to 8 areas (8 blacks / 8 mosaics) | |||||||
| Video Stream | Triple streams | |||||||
| OSD | Up to 10 OSDs | |||||||
| Image | ||||||||
| White Balance | Auto,Outdoor,Fine Tune,Sodium Lamp,Locked,Auto2 | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Smart IR | Support | N/A | ||||||
| Flip | Normal,Flip Vertical,Flip Horizontal,180°,90°Clockwise,90°Anti-clockwise | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Defog | Digital defog | |||||||
| Intelligent | ||||||||
| ANPR | Up to 4 car lanes can be set: Support pedestrian, motor vehicle and non motor vehicle image capturing; Support recognizing car license plate more accurately by choosing different country/ region; Support attribute collection: plate number, vehicle type, vehicle color, vehicle brand | |||||||
| Supports Multiple Countries | North America: United States, Canada;South America: Mexico, Brazil; EU: France, Spain, Portugal, Germany, UK, Ireland, Bulgaria, Latvia, Romania, Slovenia, Poland, Hungary, Serbia, Czech Republic, Slovakia, Bosnia and Herzegovina, Greece, Croatia, Ukraine, Lithuania, Georgia; Asia Pacific: South Korea, Indonesia, Malaysia, Singapore, Viet Nam, Bangladesh, India, Nepal, Philippines, Thailand, Cambodia;Middle East: Iraq, Saudi Arabia, United Arab Emirates, Egypt, Qatar, Tunisia, Yemen;Middle Asia: Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan, Turkmenistan | |||||||
| Capture Speed Range | ≤ 120 km/h | |||||||
| Events | ||||||||
| Basic Detection | Motion detection,Audio detection,Tampering alarm | |||||||
| General Function | Watermark,IP Address Filtering,Access Policy,ARP Protection,RTSP Authentication,User Authentication,HTTP authentication,Alarm input,Alarm output | |||||||
| Audio | ||||||||
| Audio Compression | G.711U,G.711A | |||||||
| Audio Bitrate | 128 Kbps | |||||||
| Two-way Audio | Support | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 16KHZ | |||||||
| Storage | ||||||||
| Edge Storage | Micro SD, up to 512 GB | |||||||
| Network Storage | ANR,NAS(NFS) | |||||||
| Network | ||||||||
| Protocols | IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK | |||||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF, TLS 1.3 | |||||||
| Client | EZStation, UNV-Link, UNV-Link Pro | |||||||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | |||||||
| PTZ | ||||||||
| Home Position | Support | |||||||
| Number of Presets | 1024 | |||||||
| Interface | ||||||||
| Audio I/O | 2 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] | |||||||
| Alarm I/O | 3/2 | |||||||
| Serial Port | 1 channel RS485 interface | |||||||
| Built-in Mic | Support, built-in mic*2 | |||||||
| Built-in Speaker | Support | |||||||
| Network | 1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet | |||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032:2015+A11:2020+A1:2020,EN 61000-3-3:2013+A1:2019+A2:2021,EN IEC 61000-3-2: 2019+A1: 2021, EN 50130-4:2011+A1:2014) FCC (FCC CFR 47 part15 B, ANSI C63.4 2014) |
|||||||
| Safety | EN IEC 62368-1:2020+A11:2020 UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01 ) |
|||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |||||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
|||||||
| General | ||||||||
| Power | DC12V(±25%) , PoE+ (IEEE 802.3at) | |||||||
| Power Consumption | Max 19W | Max 21W | ||||||
| Power Interface | Ø5.5 mm coaxial power plug | |||||||
| Dimensions | 406 x 125 x 130mm(16.0” x 4.9” x 5.1”) | |||||||
| Weight | 1.86Kg(4.10lb) | |||||||
| Working Environment | -40℃ ~ 70℃ (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Storage Environment | -40℃ ~ 70℃ (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Surge Protection | 6 KV | |||||||
| Reset Button | Support | |||||||
| Heater | Support | |||||||
| RTC | Support | |||||||
| Material | Sun shield：Plastic Front cover：Metal Body：Metal |
|||||||
| Live View | ||||||||
| Maximum Bitstream | 35 | |||||||
| Maximum Bandwidth | 50 Mbps | |||||||
| OSD Font | Vector | |||||||
| OSD Color | Support | |||||||
| OSD Character Number | 40 | |||||||
| Other | ||||||||
| Corridor Mode | Support | |||||||
