| Model |

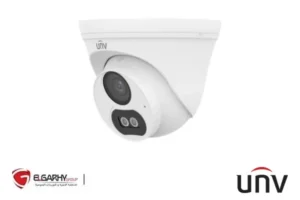

IPC3612LB-AF28-DL-ECO |
| Camera |
| Max Resolution |
2 MP |
| Sensor |
1/3.0″ CMOS |
| Minimum Illumination |
Color: 0.005 Lux (F1.6, AGC ON), 0 Lux with IR on |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Shutter |
Auto/Manual, 1 to 1/100000 s |
| Adjustment Angle |
Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360° |
| S/N |
> 52 dB |
| WDR |
DWDR |
| Lens |
| Focal Length |
2.8 mm |
| Iris Type |
Fixed |
| Iris |
F1.6 |
| Field of View (H) |
85.1° |
| Field of View (V) |
46.6° |
| Field of View (D) |
95.5° |
| Lens Type |
Fixed |
| DORI |
| DORI Distance (Lens) |
2.8 mm |
| DORI Distance (Detect) |
51.4 m (168.7 ft.) |
| DORI Distance (Observe) |
20.6 m (67.5 ft.) |
| DORI Distance (Recognize) |
10.3 m (33.8 ft.) |
| DORI Distance (Identify) |
5.1 m (16.9 ft.) |
| Illuminator |
| Supplemental Light |
Dual light |
| Illumination Distance (IR) |
30 m (98.4 ft.) |
| Illumination Distance (Warm Light) |
15 m (49.2 ft.) |
| Wavelength |
850 nm |
| IR On/Off Control |
Auto/Manual |
| Video |
| Video Compression |
Ultra 265, H.265, H.264 |
| H.264 Code Profile |
Baseline profile, Main profile, High profile |
| Frame Rate |
Main Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps;Sub Stream: 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; |
| Video Bit Rate |
128 Kbps to 6144 Kbps |
| U-code |
Support |
| OSD |
Up to 4 OSDs |
| Privacy Mask |
Up to 4 areas |
| ROI |
Up to 8 areas |
| Video Stream |
Dual streams |
| Image |
| White Balance |
Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance |
| Digital Noise Reduction |
2D/3D DNR |
| Smart IR |
Support |
| Flip |
Normal, Flip vertical, Flip horizontal, 180° |
| Dewarping |
N/A |
| HLC |
Support |
| BLC |
Support |
| Defog |
Digital defog |
| Image Stabilization |
N/A |
| Events |
| Basic Detection |
Motion detection, Audio detection, Human body detection 2.0 |
| General Function |
Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| Audio |
| Audio Compression |
G.711U, G.711A |
| Audio Bitrate |
64 Kbps |
| Two-way Audio |
N/A |
| Suppression |
Support |
| Sampling Rate |
8 kHz |
| Storage |
| Edge Storage |
N/A |
| Network |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, UPnP, HTTP, QoS, RTCP, RTMP |
| Compatible Integration |
ONVIF (Profile S, Profile T) , API, SDK |
| User/Host |
Up to 32 users. 2 user levels: administrator and common user |
| Security |
Password Protection, Strong Password, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF |
| Client |
UNV-Link, UNV-Link Pro, EZStation |
| Web Browser |
Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Interface |
| Audio I/O |
N/A |
| Alarm I/O |
N/A |
| Serial Port |
N/A |
| Built-in Mic |
Support |
| Built-in Speaker |
N/A |
| WIFI |
N/A |
| Network |
1 × RJ45 10M/100M Base-TX Ethernet |
| Video Output |
N/A |
| Certification |
| EMC |
CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4)FCC (FCC 47 CFR part15 B) |
| Safety |
CE LVD (EN 62368-1) |
| Environment |
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); |
| Protection |
IP67 (IEC 60529) |
| General |
| Power |
PoE (IEEE 802.3af) |
| Power Consumption |
Max. 3.5 W |
| Power Interface |
N/A |
| Dimensions |
Ø118 mm × 100 mm (Ø4.6″ × 3.9″) (Ø × H) |
| Weight |
0.19 kg (0.42 lb.) |
| Material |
Graphene + Plastic |
| Working Environment |
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment |
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection |
4 KV |
| Reset Button |
N/A |
| Web Client Language |
1. Language: English |
