| Model |

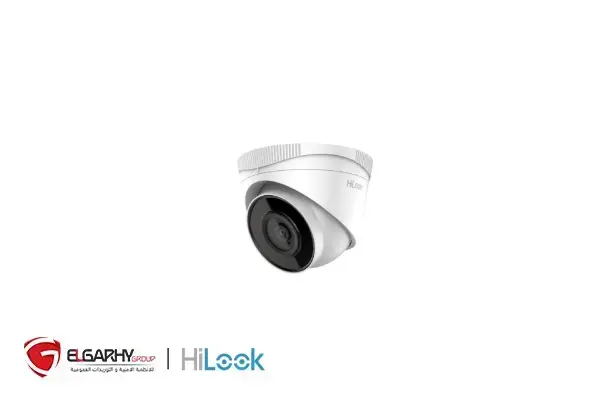

IPC-T240H |
| Image Sensor |
1/3″ Progressive Scan CMOS |
| Max. Resolution |
2560 × 1440 |
| Min. Illumination |
Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR |
| Shutter Time |
1/3 s to 1/100,000 s |
| Day & Night |
IR cut filter |
| Angle Adjustment |
Pan: 0°–360°, Tilt: 0°–75°, Rotate: 0°–360° |
| Lens Type |
Fixed focal lens (2.8 mm / 4 mm optional) |
| Focal Length & FOV |
2.8 mm: H 98.0°, V 53.1°, D 114.7° 4 mm: H 78.7°, V 43.1°, D 92.3° |
| Lens Mount |
M12 |
| Iris Type |
Fixed |
| Aperture |
F2.0 |
| Supplement Light Type |
IR |
| Supplement Light Range |
Up to 30 m |
| Smart Supplement Light |
Yes |
| IR Wavelength |
850 nm |
| Main Stream |
50 Hz: 20 fps (2560×1440), 25 fps (1920×1080, 1280×720) 60 Hz: 20 fps (2560×1440), 30 fps (1920×1080, 1280×720) |
| Sub-Stream |
50 Hz: 25 fps (640×480, 640×360) 60 Hz: 30 fps (640×480, 640×360) |
| Video Compression |
Main: H.265/H.264/H.265+/H.264+ Sub: H.265/H.264/MJPEG |
| Video Bit Rate |
32 Kbps – 8 Mbps |
| H.264 Type |
Baseline / Main / High Profile |
| H.265 Type |
Main Profile |
| ROI |
1 fixed region for main stream |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| Simultaneous Live View |
Up to 6 channels |
| API |
ONVIF, ISAPI |
| User/Host |
Up to 32 users (Admin / Operator / User) |
| Client |
iVMS-4200, Hik-Connect |
| Web Browser |
Live view plugin: IE 10+ Plugin-free: Chrome 57+, Firefox 52+ |
| Image Settings |
Saturation, brightness, contrast, sharpness, AGC, white balance |
| Day/Night Switch |
Auto, Schedule, Day, Night |
| WDR |
120 dB |
| Image Enhancement |
BLC, 3D DNR |
| Ethernet Interface |
1 RJ45 10/100M self-adaptive Ethernet port |
| Basic Event |
Motion detection, video tampering alarm, exception |
| Event Linkage |
Upload to FTP, notify surveillance center, send email |
| Power |
12 VDC ±25%, 0.4 A (max. 5 W) PoE: IEEE 802.3af Class 3, max. 6.5 W |
| Dimension |
Ø112 mm × 81.5 mm (Ø4.41″ × 3.21″) |
| Package Dimension |
150 × 150 × 141 mm (5.9″ × 5.9″ × 5.6″) |
| Weight |
320 g (0.7 lb) With package: 556 g (1.2 lb) |
| Storage Conditions |
-30 °C to 60 °C, Humidity ≤ 95% (non-condensing) |
| Operating Conditions |
-30 °C to 60 °C, Humidity ≤ 95% (non-condensing) |
| General Functions |
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Approval (EMC) |
FCC SDoC, CE-EMC, RCM, IC VoC, KC |
| Approval (Safety) |
UL, CB, CE-LVD, BIS |
| Environment |
CE-RoHS, WEEE, REACH |
| Protection |
IP67 |
