| Model |

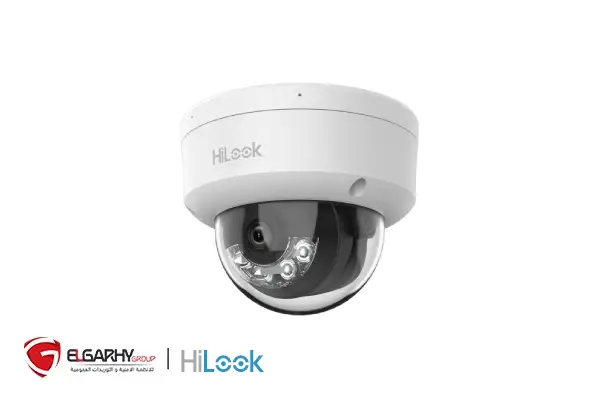

IPC-D140HA-LUFC |
| Image Sensor |
1/2.8″ Progressive Scan CMOS |
| Max. Resolution |
2560 × 1440 |
| Min. Illumination |
Color: 0.01 Lux @ (F2.2, AGC ON), B/W: 0 Lux with IR |
| Shutter Time |
1/3 s to 1/100,000 s |
| Day & Night |
IR cut filter |
| Angle Adjustment |
Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355° |
| Lens |
|
| Lens Type |
Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV |
2.8 mm: H 104°, V 57°, D 123°4 mm: H 82°, V 45°, D 98° |
| Lens Mount |
M12 |
| Iris Type |
Fixed |
| Aperture |
F2.2 |
| Depth of Field |
2.8 mm: 0.9 m to ∞ 4 mm: 1.1 m to ∞ |
| DORI |
2.8 mm: D 53 m, O 21 m, R 10 m, I 5 m 4 mm: D 67 m, O 26 m, R 13 m, I 6 m |
| Illuminator |
|
| Supplement Light Type |
IR, White Light |
| Range |
Up to 20 m |
| Smart Supplement Light |
Yes |
| IR Wavelength |
850 nm |
| Video |
|
| Main Stream |
50 Hz: 20 fps (2560×1440), 25 fps (1920×1080, 1280×720)60 Hz: 20 fps (2560×1440), 24 fps (1920×1080, 1280×720) |
| Sub-Stream |
50 Hz: 25 fps (1280×720, 640×480, 640×360)60 Hz: 24 fps (1280×720, 640×480, 640×360) |
| Video Compression |
H.265+/H.265/H.264+/H.264 (Main) H.265/H.264/MJPEG (Sub) |
| Bit Rate |
32 Kbps to 8 Mbps |
