| MODEL |

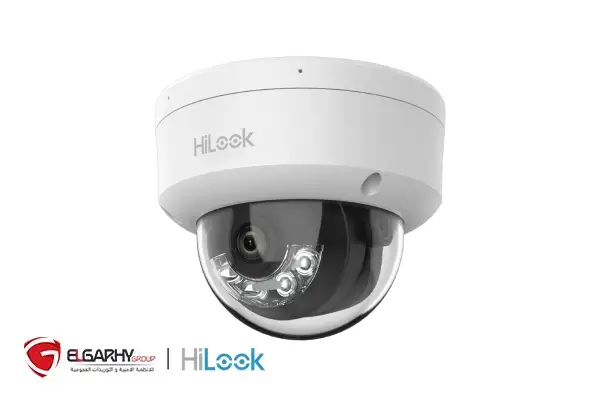

IPC-D140HA-LU |
| Image Sensor |
1/3″ Progressive Scan CMOS |
| Max. Resolution |
2560 × 1440 |
| Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time |
1/3 s to 1/100,000 s |
| Day & Night |
IR cut filter |
| Angle Adjustment |
Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355° |
| Lens Type |
Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV |
2.8 mm: H 98°, V 54°, D 114°4 mm: H 78°, V 42°, D 93° |
| Lens Mount |
M12 |
| Iris Type |
Fixed |
| Aperture |
F1.6 |
| DORI (2.8 mm) |
D: 63 m, O: 25 m, R: 12 m, I: 6 m |
| DORI (4 mm) |
D: 78 m, O: 31 m, R: 15 m, I: 7 m |
| Supplement Light Type |
IR, White Light |
| Supplement Light Range |
Up to 30 m |
| Smart Supplement Light |
Yes |
| IR Wavelength |
850 nm |
| Main Stream (50Hz) |
20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) |
| Main Stream (60Hz) |
20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720) |
| Sub Stream (50Hz) |
25 fps (1280 × 720, 640 × 480, 640 × 360) |
| Sub Stream (60Hz) |
24 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression |
H.265+/H.265/H.264+/H.264 (main), H.265/H.264/MJPEG (sub) |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| H.264 Type |
Baseline / Main / High Profile |
| H.265 Type |
Main Profile |
| Bit Rate Control |
CBR, VBR |
| ROI |
1 fixed region for main stream |
| Audio Type |
Mono |
| Noise Filtering |
Yes |
| Audio Sampling Rate |
8 kHz / 16 kHz |
| Audio Compression |
G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC |
| Audio Bit Rate |
64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32–160 Kbps (MP2L2), 16–64 Kbps (AAC-LC) |
| Security |
Password protection, complicated password, watermark, HTTP/ONVIF authentication, security log, MAC filtering |
| Simultaneous Live View |
Up to 6 channels |
| API |
ONVIF (Profile S, T), ISAPI, SDK |
| Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| Users |
Up to 32 (Admin / Operator / User) |
| Client |
iVMS-4200, HiLookVision |
| Web Browser |
IE10/11 (plug-in), Chrome 57+, Firefox 52+ (local service) |
| WDR |
120 dB |
| SNR |
≥ 52 dB |
| Day/Night Switch |
Auto / Schedule / Manual |
| Image Enhancement |
BLC, HLC, 3D DNR |
| Image Settings |
Rotate, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance |
| Privacy Mask |
4 programmable polygon masks |
| Ethernet Port |
1 × RJ45 (10/100M adaptive) |
| Built-in Microphone |
Yes |
| Events |
Motion detection, video tampering, exception |
| Event Linkage |
FTP upload, Email, Notify center, Capture |
| Power |
12V DC ±25% (6W max), PoE IEEE 802.3af Class 3 (7.5W max) |
| Material |
Metal & Plastic |
| Dimension |
Ø121.4 × 97.7 mm |
| Weight |
550 g (net), 800 g (with package) |
| Operating Conditions |
-30 °C to 60 °C, ≤95% RH (non-condensing) |
| Languages |
English, Ukrainian |
| General Functions |
Heartbeat, anti-banding, mirror, password reset via email |
| Approvals |
EMC: FCC, CE-EMC, RCM, ICSafety: CB, CE-LVDEnvironment: CE-RoHS, WEEE, REACH |
| Protection |
IP67, IK08 |
