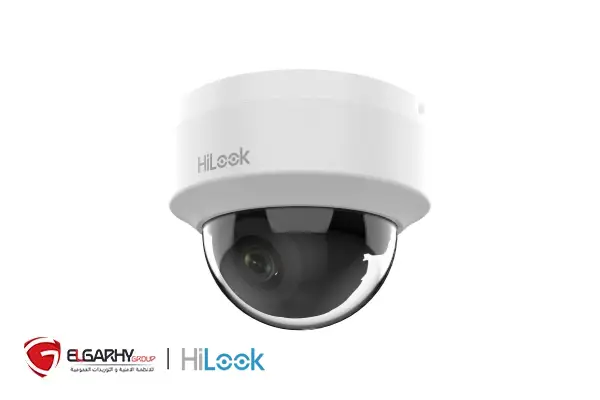

| Model |
ipc-d121H-C |
| Image Sensor |
1/2.9″ Progressive Scan CMOS |
| Max. Resolution |
1920 × 1080 |
| Min. Illumination |
Color: 0.01 Lux @ (F2.2, AGC ON)B/W: 0 Lux with IR |
| Shutter Time |
1/3 s to 1/100,000 s |
| Day & Night |
IR cut filter |
| Angle Adjustment |
Pan: 0° to 355°, Tilt: 0° to 75° |
| Lens Type |
Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV |
2.8 mm: H 101°, V 56°, D 118°4 mm: H 80°, V 44°, D 94° |
| Lens Mount |
M12 |
| Iris Type |
Fixed |
| Aperture |
F2.2 |
| Depth of Field |
2.8 mm: 0.8 m – ∞4 mm: 1 m – ∞ |
| DORI |
2.8 mm: D: 44 m, O: 17 m, R: 8 m, I: 4 m4 mm: D: 55 m, O: 22 m, R: 11 m, I: 5 m |
| Supplement Light Type |
IR |
| Supplement Light Range |
Up to 20 m |
| Smart Supplement Light |
Yes |
| IR Wavelength |
850 nm |
| Main Stream |
50 Hz: 25 fps (1920 × 1080, 1280 × 720)60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream |
50 Hz: 25 fps (640 × 480, 640 × 360)60 Hz: 30 fps (640 × 480, 640 × 360) |
| Video Compression |
Main: H.265+/H.265/H.264+/H.264Sub: H.265/H.264 |
| Video Bit Rate |
32 Kbps – 8 Mbps |
| H.264 Type |
Baseline, Main, High |
| H.265 Type |
Main |
| Bit Rate Control |
CBR, VBR |
| Network Security |
Password protection, complicated password, watermark, HTTP auth, audit log, MAC filtering |
| Simultaneous Live View |
Up to 6 channels |
| API |
ISAPI, SDK |
| Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, UDP, QoS |
| Users/Hosts |
Up to 32 users (Adm |
