| Category | Specification |
|---|---|

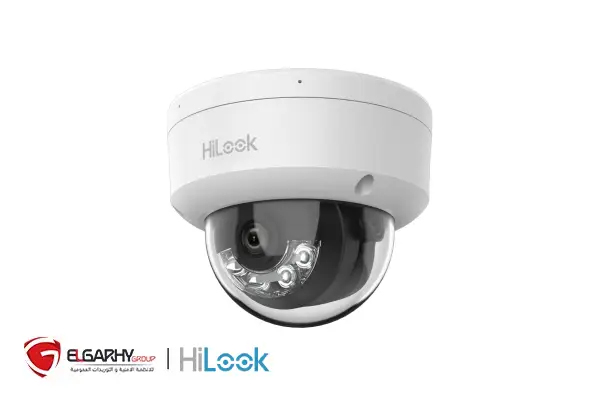

| Model | IPC-D120HA-LUC |
| Image Sensor | 1/2.9″ Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 (Full HD) |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0°–355°, Tilt: 0°–75°, Rotate: 0°–355° |
| Lens Type | Fixed focal lens, 2.8 mm and 4 mm optional |
| Focal Length & FOV | 2.8 mm: H 103°, V 56°, D 121° 4 mm: H 83°, V 44°, D 99° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | 2.8 mm: D 45 m, O 18 m, R 9 m, I 4 m 4 mm: D 56 m, O 22 m, R 11 m, I 5 m |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Main Stream | 50 Hz: 25 fps (1920×1080, 1280×720) 60 Hz: 30 fps (1920×1080, 1280×720) |
| Sub-Stream | 50 Hz: 25 fps (640×480, 640×360) 60 Hz: 30 fps (640×480, 640×360) |
| Video Compression | Main: H.265+/H.265/H.264+/H.264 Sub: H.265/H.264/MJPEG |
| Video Bitrate | 32 Kbps – 8 Mbps |
| H.264 Type | Baseline, Main, High Profile |
| H.265 Type | Main Profile |
| Bitrate Control | CBR, VBR |
| ROI | 1 fixed region for main stream |
| Audio Type | Mono sound |
| Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz / 16 kHz |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711) 16 Kbps (G.722.1) 16 Kbps (G.726) 32–160 Kbps (MP2L2) 16–64 Kbps (AAC-LC) |
| Security | Password protection, watermark, authentication, audit log, host authentication (MAC) |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile T), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| User/Host | Up to 32 users (Admin, Operator, User) |
| Client | iVMS-4200, HiLookVision |
| Web Browser | IE 10/11 (plug-in), Chrome 57+, Firefox 52+ |
| WDR | Digital WDR |
| SNR | ≥ 52 dB |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Rotate, saturation, brightness, contrast, sharpness, gain, white balance |
| Privacy Mask | 4 programmable polygon masks |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive port |
| Built-in Microphone | Yes |
| Events | Motion detection, video tampering, exception |
| Linkage Methods | FTP upload, email, notify center, trigger capture |
| Power | 12 VDC ±25% (0.4A, max. 5W), PoE IEEE 802.3af (max. 6.5W) |
| Material | Metal & Plastic |
| Dimension | Ø121.4 × 97.7 mm (Ø4.8″ × 3.8″) |
| Package Dimension | 150 × 150 × 141 mm (5.9″ × 5.9″ × 5.6″) |
| Weight | Net: 550 g (1.2 lb), With package: 800 g (1.8 lb) |
| Storage Conditions | -30°C to 60°C (-22°F to 140°F), ≤95% RH (non-condensing) |
| Operating Conditions | -30°C to 60°C (-22°F to 140°F), ≤95% RH (non-condensing) |
| Language | English, Ukrainian |
| General Functions | Heartbeat, anti-banding, mirror, password protection, reset via email |
| Approvals (EMC) | FCC Part 15, CE-EMC EN 55032, EN 61000-3-2, EN 61000-3-3, EN 50130-4, RCM, ICES-003 |
| Safety | CB IEC 62368-1, CE-LVD EN 62368-1 |
| Environment | CE-RoHS, WEEE, Reach compliant |
| Protection | IP67 (dust & water), IK08 (vandal resistance) |
