| Model |

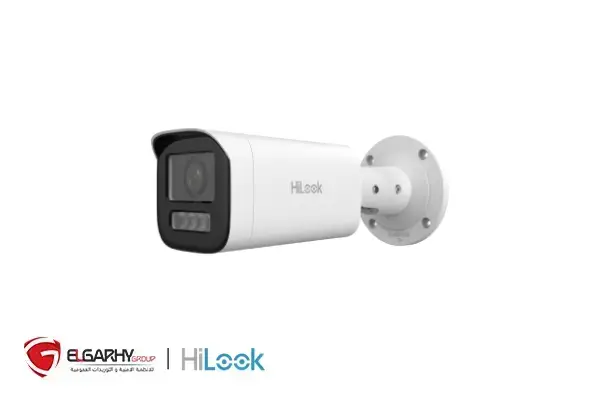

IPC-B620HA-LZU |
| Image Sensor |
1/2.9″ Progressive Scan CMOS |
| Max. Resolution |
1920 × 1080 |
| Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time |
1/3 s to 1/100,000 s |
| Day & Night |
IR cut filter |
| Angle Adjustment |
Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| Lens Type |
Varifocal lens, motorized lens, 2.8 to 12 mm |
| Focal Length & FOV |
2.8 to 12 mm, H: 102.4°–31.2°, V: 54.4°–17.5°, D: 121.8°–35.7° |
| Lens Mount |
Ø14 |
| Iris Type |
Fixed |
| Aperture |
F1.6 |
| DORI Distance |
D: 45.7–141.4 m, O: 18.1–56.1 m, R: 9.1–28.3 m, I: 4.6–14.1 m |
| Supplement Light Type |
IR, White Light |
| Supplement Light Range |
Up to 50 m |
| IR Wavelength |
850 nm |
| Smart Supplement Light |
Yes |
| Main Stream |
50 Hz: 25 fps (1920 × 1080, 1280 × 720) / 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream |
50 Hz: 25 fps (640 × 480, 640 × 360) / 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Video Compression |
Main: H.265+/H.265/H.264+/H.264, Sub: H.265/H.264/MJPEG |
| Video Bit Rate |
32 Kbps to 16 Mbps |
| H.264 Type |
Baseline/Main/High Profile |
| H.265 Type |
Main Profile |
| Bit Rate Control |
CBR, VBR |
| SVC |
H.264 and H.265 encoding |
| ROI |
1 fixed region for main stream |
| Audio Type |
Mono |
| Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate |
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32–160 Kbps (MP2L2)/16–64 Kbps (AAC-LC) |
| Audio Sampling Rate |
8 kHz/16 kHz |
| Noise Filtering |
Yes |
| Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| Simultaneous Live View |
Up to 6 channels |
| API |
ONVIF (Profile S/G/T), ISAPI, SDK |
| Users/Hosts |
Up to 32 users (Admin, Operator, User) |
| Client |
iVMS-4200, HiLookVision |
| Security |
Password protection, Watermark, HTTP authentication, MAC filtering, Security audit log |
| Web Browser |
IE 10/11 (plug-in), Chrome 57+, Firefox 52+, Edge 89+ |
| Image Settings |
Rotate, Saturation, Brightness, Contrast, Sharpness, Gain, White balance |
| Day/Night Switch |
Day, Night, Auto, Schedule |
| WDR |
Digital WDR |
| Image Enhancement |
BLC, HLC, 3D DNR |
| SNR |
≥ 52 dB |
| Privacy Mask |
4 programmable polygon masks |
| Ethernet Interface |
1 RJ45 10M/100M adaptive |
| On-board Storage |
MicroSD/SDHC/SDXC, up to 512 GB |
| Reset Key |
Yes |
| Built-in Microphone |
Yes |
| Basic Events |
Motion detection (Human/Vehicle), Tampering, Exception |
| Linkage |
FTP upload, Notify center, Email, Record, Capture, Audible warning |
| Power |
12 VDC ±25% (0.9 A, Max 11 W), PoE IEEE 802.3af Class 3 (Max 12.9 W) |
| Material |
Metal & Plastic |
| Dimension |
Ø105 × 252 mm (Ø4.13″ × 9.92″) |
| Package Dimension |
315 × 137 × 141 mm (12.40″ × 5.39″ × 5.55″) |
| Weight |
565 g (1.2 lb), With Package: 860 g (1.9 lb) |
| Operating Conditions |
-30 °C to 60 °C, Humidity ≤ 95% (non-condensing) |
| Languages |
English, Ukrainian |
| General Functions |
Heartbeat, Anti-banding, Mirror, Password reset via email |
| Approvals (EMC) |
CE-EMC, RCM, IC |
| Safety |
CB, CE-LVD |
| Environment |
CE-RoHS, WEEE, Reach |
| Protection |
IP67 |
