| Model |

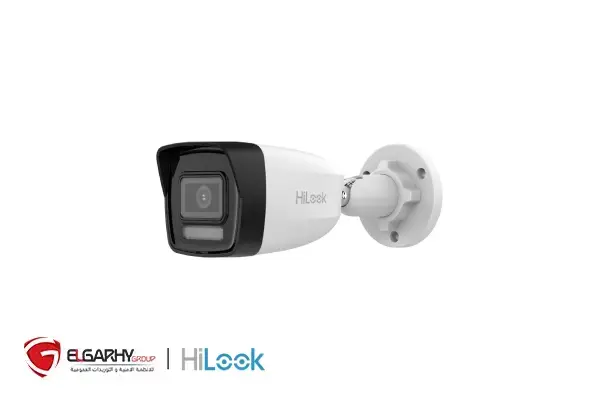

IPC-B140HA-LU |
| Image Sensor |
1/3″ Progressive Scan CMOS |
| Max. Resolution |
2560 × 1440 |
| Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time |
1/3 s to 1/100,000 s |
| Day & Night |
IR cut filter |
| Angle Adjustment |
Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| Lens Type |
Fixed focal lens, 2.8 mm / 4 mm optional |
| Focal Length & FOV |
2.8 mm: H: 98°, V: 54°, D: 114° 4 mm: H: 78°, V: 42°, D: 93° |
| Lens Mount |
M12 |
| Iris Type |
Fixed |
| Aperture |
F1.6 |
| DORI |
2.8 mm: D: 63 m, O: 25 m, R: 12 m, I: 6 m 4 mm: D: 78 m, O: 31 m, R: 15 m, I: 7 m |
| Supplement Light |
IR, White Light |
| Light Range |
Up to 30 m |
| Smart Supplement Light |
Yes |
| IR Wavelength |
850 nm |
| Main Stream |
50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream |
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression |
Main: H.265+/H.265/H.264+/H.264 Sub: H.265/H.264/MJPEG |
| Video Bit Rate |
32 Kbps – 8 Mbps |
| Bit Rate Control |
CBR, VBR |
| H.264 Type |
Baseline / Main / High Profile |
| H.265 Type |
Main Profile |
| ROI |
1 fixed region for main stream |
| Audio |
Mono sound, Built-in mic, Noise filtering |
| Audio Compression |
G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC |
| Audio Bit Rate |
64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32–160 Kbps (MP2L2), 16–64 Kbps (AAC-LC) |
| Network Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| Security |
Password protection, watermark, authentication, security audit log |
| Simultaneous Live View |
Up to 6 channels |
| API |
ONVIF (Profile S, T), ISAPI, SDK |
| Users |
Up to 32 (Admin, Operator, User) |
| Client |
iVMS-4200, HiLookVision |
| Web Browser |
IE10/11 (Plug-in), Chrome 57+, Firefox 52+ |
| Image Features |
WDR 120 dB, SNR ≥ 52 dB, BLC, HLC, 3D DNR |
| Image Settings |
Rotate, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance |
| Privacy Mask |
4 programmable polygon masks |
| Ethernet |
1 RJ45 10M/100M self-adaptive port |
| Events |
Motion detection, tampering, exception |
| Linkage |
Upload to FTP, Email, Notify, Capture |
| Power |
12 VDC ±25% (Max 5W) / PoE IEEE 802.3af (Max 6.5W) |
| Material |
Metal & Plastic |
| Dimension |
184.1 × 66 × 69.1 mm (7.3″ × 2.6″ × 2.7″) |
| Weight |
Net: ~270 g, With Package: ~481 g |
| Operating Conditions |
-30 °C to 60 °C, ≤95% RH (non-condensing) |
| Storage Conditions |
-30 °C to 60 °C, ≤95% RH (non-condensing) |
| Language |
English, Ukrainian |
| Functions |
Heartbeat, Anti-banding, Mirror, Password protection, Reset via email |
| Protection |
IP67 |
| Certifications (EMC) |
FCC, CE-EMC, RCM, IC |
| Certifications (Safety) |
CB, CE-LVD |
| Environment |
CE-RoHS, WEEE, REACH |
