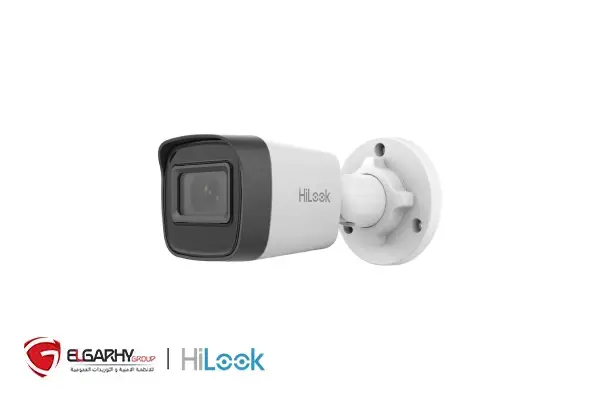

| MODEL |
IPC-B121H-C |
| Image Sensor |
1/2.9″ Progressive Scan CMOS |
| Max. Resolution |
1920 × 1080 |
| Min. Illumination |
Color: 0.01 Lux @ (F2.2, AGC ON), B/W: 0 Lux with IR |
| Shutter Time |
1/3 s to 1/100,000 s |
| Day & Night |
IR cut filter |
| Angle Adjustment |
Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| Lens Type |
Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV |
2.8 mm: H 94°, V 51°, D 112°4 mm: H 80°, V 44°, D 94° |
| Lens Mount |
M12 |
| Iris Type |
Fixed |
| Aperture |
F2.2 |
| DORI (2.8 mm) |
D: 48 m, O: 19 m, R: 9 m, I: 4 m |
| DORI (4 mm) |
D: 55 m, O: 22 m, R: 11 m, I: 5 m |
| Supplement Light Type |
IR |
| Supplement Light Range |
Up to 20 m |
| Smart Supplement Light |
Yes |
| IR Wavelength |
850 nm |
| Main Stream (50Hz) |
25 fps (1920 × 1080, 1280 × 720) |
| Main Stream (60Hz) |
30 fps (1920 × 1080, 1280 × 720) |
| Sub Stream (50Hz) |
25 fps (640 × 480, 640 × 360) |
| Sub Stream (60Hz) |
30 fps (640 × 480, 640 × 360) |
| Video Compression |
H.265+/H.265/H.264+/H.264 (main), H.265/H.264 (sub) |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| H.264 Type |
Baseline / Main / High Profile |
| H.265 Type |
Main Profile |
| Bit Rate Control |
CBR, VBR |
| Security |
Password protection, complicated password, watermark, HTTP authentication, security audit log, MAC filtering |
| Simultaneous Live View |
Up to 6 channels |
| API |
ISAPI, SDK |
| Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, UDP, QoS |
| Users |
Up to 32 (Admin / Operator / User) |
| Client |
iVMS-4200 |
| Web Browser |
IE10/11 (plug-in), Chrome 57+, Firefox 52+ (local service) |
| WDR |
Digital WDR |
| SNR |
≥ 52 dB |
| Day/Night Switch |
Auto / Schedule / Manual |
| Image Enhancement |
BLC, HLC, 3D DNR |
| Image Settings |
Saturation, Brightness, Contrast, Sharpness, Gain, White Balance |
| Ethernet Port |
1 × RJ45 (10/100M adaptive) |
| Events |
Motion detection, exception |
| Event Linkage |
Notify surveillance center |
| Power |
12V DC ±25% (5W max), PoE IEEE 802.3af Class 3 (6.5W max) |
| Material |
Plastic |
| Dimension |
138.8 × 60.9 × 57.9 mm |
| Package Dimension |
163 × 75 × 75 mm |
| Weight |
175 g (net), 250 g (with package) |
| Operating Conditions |
-30 °C to 60 °C, ≤95% RH (non-condensing) |
| Languages |
English, Ukrainian |
| General Functions |
Heartbeat, anti-banding, mirror, password reset via email |
| Approvals |
EMC: CE-EMCSafety: CB, CE-LVDEnvironment: CE-RoHS, WEEE, REACH |
| Protection |
IP67 |
