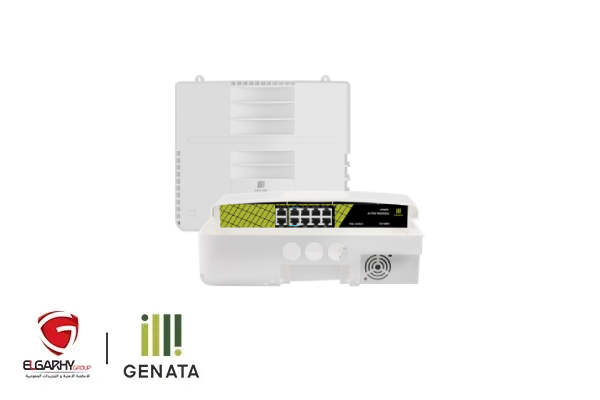

| Unit Model Genata Switch |
GNT-P9828F6 |
| Port |
2*100Mbps Uplink ports +8*100Mbps PoE ports |
| Transmission Rate |
2000Mbps Full Duplex; 10 or 100 or 1000Mbps Half Duplex |
| Max transmission distance |
130m |
| Power support |
Power input: AC 110~220V Total≤120W
PoE Watchdog: Port 1-8
Power output: PoE1~6Port:1/2(+52V),3/6(GND)≤30W
PoE7~8Port:1245(+53V),3678(GND) compatible1/2(+52V),3/6(GND)≤60W |
| Ports(1-6)Support |
IEEE 802.3af/at protocol |
| Ports(7-8)Support |
IEEE 802.3af/at/bt protocol |
| Performance Specification |
| Bandwidth: 2 Gbps |
| Network Latency (10 to 1000Mbps): ≦16μs (use the 64byte package size) |
| MAC address table: 2K |
| The Frame Filter & Transmission Rate: 14800pps the most for 10M port, 148800pps the most for 100M port,1488000pps the most for 1000M port |
|
| Networking Standard |
| IEEE 802.3i 10BASE-T |
| IEEE 802.3u 100BASE-TX/ IEEE 802.3ab 1000BASE-T |
| IEEE 802.3xFlowControl |
| IEEE 802.3af/at/bt Power over Ethernet |
|
| Protection Level |
Lightning Protection:6KV, Per: IEC61000-4-5
ESD Protection:8KV, Per: IEC61000-4-2 |
| Physical Specifications |
Size(L*W*H)：310mm*260mm*100mm |
| Working Environment |
| Operating Temperature: -30℃ ~60℃ |
| Storage Temperature: -40℃ ~70℃ |
| Operating Humidity: 10%~90% non-condensing |
| Storage Humidity: 5%~90% non-condensing |
|
| Electromagnetic Compatibility |
| CE mark |
| FCC Part15，Class B |
| VCCI Class BEN55022 (CISPR 22) |
| C-Tick |
|
| Other Functions |
| Short-circuit protection |
| Over-Temperature protection |
| Preventing surge |
|
