| Category | Specifications |
|---|---|

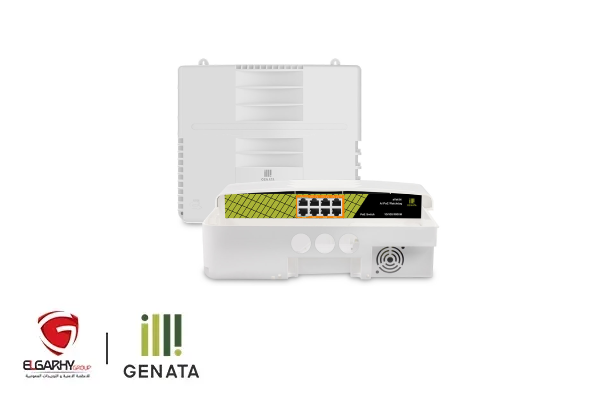

| Model | GNT-P1008G6-F Genata |
| Ports | PoE (1~6):10/100/1000Mbps PoE ports (RJ45) PoE (7~8):10/100/1000Mbps PoE ports (RJ45),Support bt 60W High Power |
| Transmission Rate | – 2000Mbps Full Duplex- 10/100/1000 Mbps Half Duplex |
| Transmission Distance | Up to 130 meters |
| Bandwidth | 16Gbps |
| Network Latency | ≤16μs (with 64-byte packet size) |
| MAC Address Table | 8K |
| Frame Filter & Transmission Rate | – 10M Port: up to 14,800 pps- 100M Port: up to 148,800 pps- 1000M Port: up to 1,488,000 pps |
| Networking Standards | – IEEE 802.3i 10BASE-T- IEEE 802.3u 100BASE-TX- IEEE 802.3ab 1000BASE-T- IEEE 802.3x Flow Control- IEEE 802.3af/at/bt Power over Ethernet |
| Power Input | AC 90~240V, Total ≤120W |
| Power Output | Power Output: PoE1~6 Port:1/2(+52V),3/6(GND)≤30W PoE 7~8 Port:1245(+53V),3678(GND) Compatible1/2(+52V),3/6(GND)≤60W |
| AI Watchdog | Supported on Ports 1~8 |
| Lightning Protection | 6KV |
| ESD Protection | 8KV |
| Size (L × W × H) | 310mm × 260mm × 100mm |
| Weight | 1.6 KG |
| Operating Temperature | -30°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% Non-condensing |
| Storage Humidity | 5% to 90% Non-condensing |
| Certifications | CE, FCC, RoHS 2.0 |
| Warranty | 1 Year (Whole Device) |
| Package Contents | AC Power Cable, User Manual, Installation Kits (Steel hoops, Waterproof pipes, Wall mounting earrings) |
