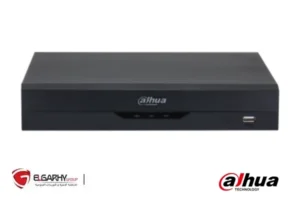

DH-XVR5116HS-I3/T
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
Industrial-grade processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating System |
Embedded Linux |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Interface |
Web; Local GUI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
AcuPick |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
AcuPick Performance of AI by Recorder (1080P) (Number of Channels) |
2 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Perimeter Protection |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Perimeter Performance AI by Recorder (Number of Channels) |
4 channels, 10 IVS rules for each channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Detection |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Attributes |
6 attributes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Detection Performance of AI by Recorder (Number of Channels) |
2 channels (up to 12 face images/s each channel) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Recognition |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Database Capacity |
Up to 10 face databases with 10,000 images. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Recognition Performance of AI by Recorder (Number of Channels) |
2 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SMD |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SMD Plus by Recorder |
16 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SMD by Camera |
24 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
AI Video Quality Analytics |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
AI Video Quality Analytics by Recorder |
16 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scene Changing |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scene Changing by Recorder |
1 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Irregular Black Block Masking |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Irregular Black Block Masking by Recorder |
1 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio and Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Analog Camera Input |
16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Camera Input |
1. CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IP Camera Input |
Up to 24 channels of IPC access |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Encoding Capacity |
Encode Enhancement disabled: |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dual-stream |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Bit Rate |
32 kbps–6144 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Sampling |
8 kHz, 16 bit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Bit Rate |
64 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Output |
1 HDMI, 1 VGA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Multi-screen Display |
When IP extension mode not enabled: 1/4/8/9/16 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Third-party Camera Access |
Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Compression Standard |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Compression |
AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Compression |
G.711a; G.711u; PCM |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Protocol |
HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mobile Phone Access |
iOS; Android |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interoperability |
ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Browser |
Chrome; IE; Safari; Edge; Firefox |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Recording Playback |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Record Mode |
General; alarm; motion detection; intelligent |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Recording Playback |
1/4/9/16 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Backup Method |
USB device and network |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Playback Mode |
Instant playback; general playback; event playback; tag playback; smart playback |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General Alarm |
Motion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Anomaly Alarm |
Error (no disk; disk error; low space; low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Intelligent Alarm |
Face detection; face recognition; perimeter protection; SMD Plus |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Linkage |
Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Ports |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Input |
1-channel RCA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Output |
1-channel RCA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Two-way Talk |
Coaxial two-way talk: 16-channel BNC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Disk Interface |
1 SATA port, up to 16 TB. This limit varies depending on the environment temperature. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RS-485 |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
USB |
2 (1 front USB 2.0 port, 1 rear USB 3.0 port) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
HDMI |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
VGA |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Port |
1 (10/100/1000 Mbps Ethernet port, RJ-45) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
12 VDC, 2 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
<12 W (without HDD) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
1.00 kg (2.20 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
1.58kg (3.48 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
260.0 mm × 237.8 mm × 47.6 mm (10.24″ × 9.36″ × 1.87″) (W × D × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
344.0 mm × 89.0 mm × 287.0 mm (13.54″ × 3.50″ × 11.30″) (W × D × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–10 °C to +55 °C (+14 °F to +131 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
–20 °C to +60 °C (–4 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–90% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Desktop |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE-LVD: IEC 62368-1:2014 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
