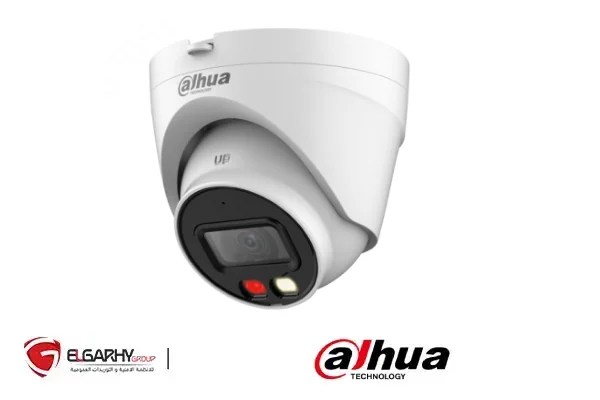

DH-IPC-HDW1439V-A-IL

4MP Entry Smart Dual Light Fixed-focal Eyeball Network Camera

Code: 1130968

48 Views

4-MP 1/2.9″ CMOS image sensor, low luminance, and high definition image.
Outputs max. 4 MP (2560 × 1440)@25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED and warm light, the max. IR illumination distance is 30 m and warm light distance is 30 m.
WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
Abnormality detection: Motion detection, video tampering, audio detection, network disconnection, IP conflict and illegal access.
Built in Mic.
12 VDC/PoE power supply,easy for installation.
IP67 protection.
Supports human detection.

Resolution : 4MP
Lens : 3.6 mm
IR : 30 m
Frame Rate: 2560 × 1440@(1–25/30 fps)Sub
Video Compression : H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
protection : IP67
Audio: Built-in Mic

Stock: HIGH STOCK

DH-IPC-HDW1439V-A-IL

Camera

Image Sensor

1/2.9″ CMOS

Max. Resolution

2560 (H) × 1440 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.006 lux@F1.6 (Color,30 IRE)

0.0006 lux@F1.6 (B/W,30 IRE)

0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

Up to 30 m (98.43 ft) (IR LED)
Up to 30 m (98.43 ft) (Warm light)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

1 (IR LED); 1 (Warm light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm;3.6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: H: 94°; V: 52°; D: 111°

3.6 mm: H: 78°; V: 41°; D: 94°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.1 m (3.61 ft)

3.6 mm: 1.7 m (5.58 ft)

DORI Distance

*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/ project design tool.

Lens

Detect

Observe

Recognize

Identify

2.8 mm

64.0 m

(209.97 ft)

25.6 m

(83.98 ft)

12.8 m

(41.99 ft)

6.4 m

(21.00 ft)

3.6 mm

85.4 m

(280.18 ft)

34.2 m

(112.20 ft)

17.1 m

(56.10 ft)

8.5 m

(27.89 ft)

Intelligence

Human Detection

Support the classification and accurate detection of human

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 2560 × 1440@(1–25/30 fps)Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution

4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–4096 kbps
H.265: 12 kbps–4096 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto;Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/180°

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes, built-in Mic

Audio Compression

G.711a; G.711Mu; PCM; G.726

Alarm

Alarm Event

Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; SMD (human); security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P

Interoperability

ONVIF (Profile S; Profile T); CGI

User/Host

6 (Total bandwidth: 24 M)

Storage

FTP

Browser

IE; Chrome; Firefox

Management Software

Smart PSS Lite; DSS; DMSS

Mobile Client

iOS;Android

Cyber Security

Configuration encryption;trusted execution;Digest;security logs;HTTPS;trusted upgrade;WSSE;trusted boot;account lockout;generation and importing of X.509 certification;video encryption

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Power

Power Supply

12 VDC/PoE (802.3af)

Power Consumption

Basic: 2 W (12 VDC); 2.9 W (PoE) Max. (H.265 + intelligence on+ WDR + illuminatorintensity): 4.6 W (12 VDC); 5.7 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140°F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

≤95%

Protection

IP67

Structure

Casing Material

Inner core: Metal+plastic Cover: Plastic

Product Dimensions

100.9 mm × Φ109.9 mm (3.97″ × Φ4.33″)

Net Weight

0.33 kg (0.73 lb)

Gross Weight

0.45 kg (0.99 lb)
